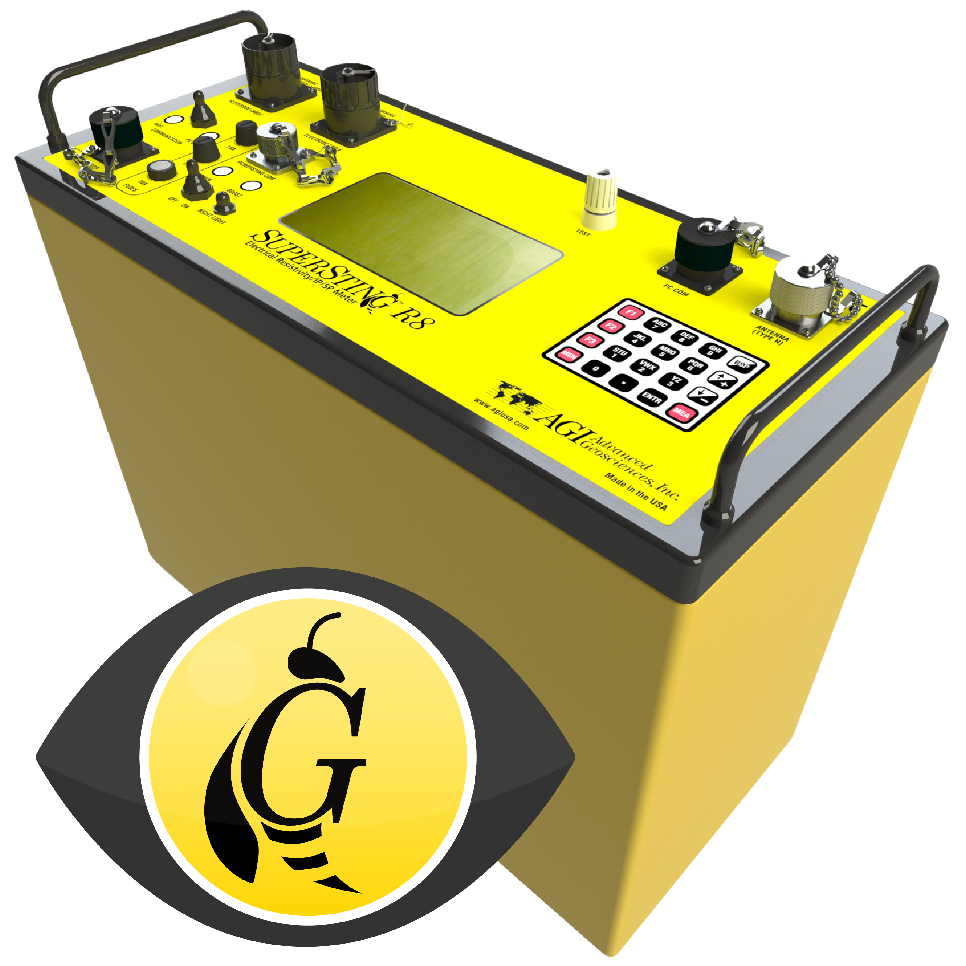

SuperSting™ Monitoring System

Product Documents

The SuperSting™ Monitoring System is an add-on module to the SuperSting™ Wi-Fi, our multi-channel electrical imaging system. It monitors landfills, well sites, dams, and other unattended locations where changes of resistivity conditions over time must be recorded and analyzed.

This network-aware system is designed to be monitored remotely, so you can access the data no matter where you are located.

Use Cases:

Monitoring leaking in dams and levees
Monitoring leaching in landfills
Monitoring pollution
Time lapse studies for locating landslide prone areas

Product Features:

The system consists of a SuperSting™ system on a remote location connected to fixed measurement cables and powered by two battery banks. The deep cycle batteries are charged constantly except when used by the SuperSting™, and the battery bank is isolated from the chargers for precision measurements during operation. The server software runs on a PC on the remote location and controls measurement tasks to execute on a time schedule.

Parts that come with the system:

Description	Quantity
SuperSting™ Remote Interface Box	1
Battery Charger, 12V, 30A, Lead Acid	2
Cable For Remote Interface Box - Battery Connection	4
Cable For Remote Interface Box - Battery Charger Connection	2
Serial Connection Cable, Male/Female DB9 Connector	1
RS-232 Opto Isolation Module	1
Adapters For The Opto Isolation Module	2
RS-232 Serial Communication Cable	1
PC Parallel Port Cable	1
SSRemoteServer & SSRemoteClient Software On CD	1
Client PC Hardware Key (Dongle) For USB Port	1
Client PC Hardware Key (Dongle) For USB Port	1
SuperSting™ Remote Instruction Manual	1

You will need to purchase the following parts separately for the system:

Description	Quantity
SuperSting™ Instrument	1
High-Capacity Deep-Cycle 12V Batteries (We recommend the 12V, AGM type, 105 AmpHour battery manufactured by MK, part number MK8A31.)	2
Extra 12V, AGM Type, 105 AmpHour Battery (Manufactured by MK, part number MK8A31.)	2
Internet Connection To Remote Site, Local Area Network Access To Server PC, Or Dial-In Modem Attached To Server PC (Including Normal Phone Line)
Uninterruptible Power Supply (UPS) For The Server PC	1
