Manual Sounding Cable Set - Long

Product Documents

These long reels of manual cable are used for vertical electrical sounding (VES) and profiling.

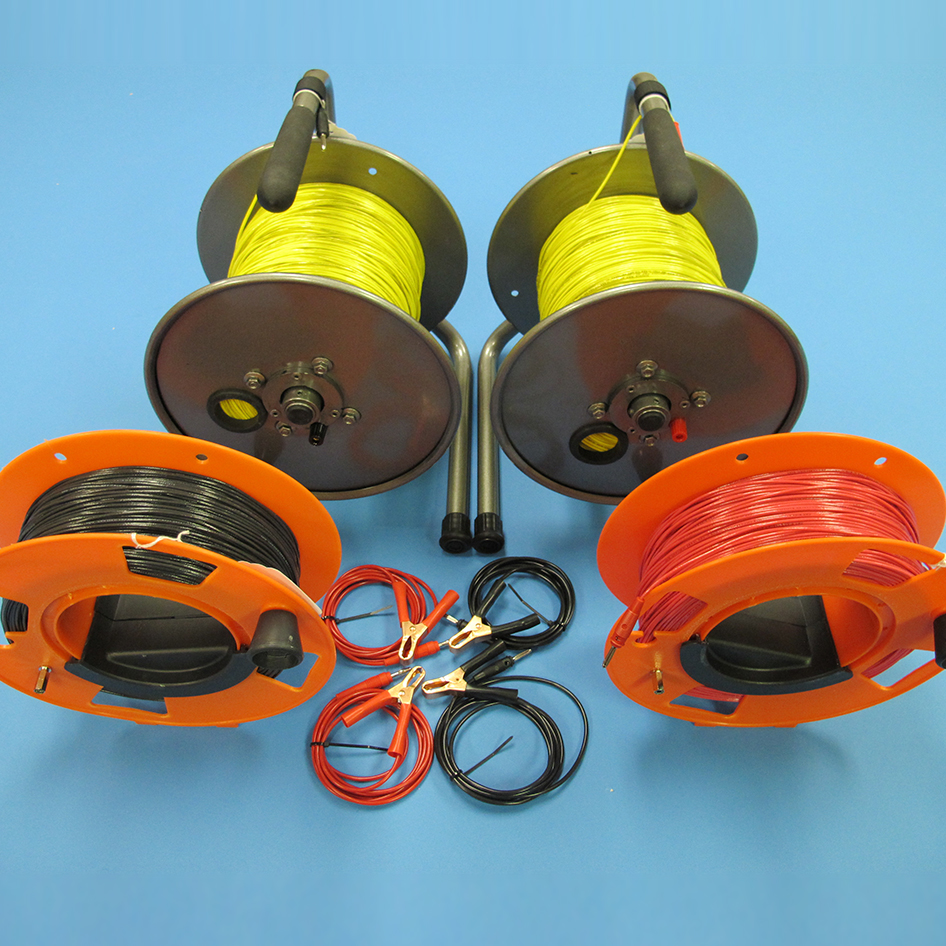

The Long Cable Set Includes:

  • Two plastic hand reels used for current. Each reel has 750m of cable.
  • Two plastic hand reels used for potential. Each reel has 250m of cable.
  • Meter jumper cables, banana plugs, and a mueller clip.
  • Four stainless steel stakes.



Use Cases:

  • Vertical Electrical Sounding (VES)
  • Performing the IEEE Fall-Off-Potential (FOP) method
  • Four-Pin Wenner Soil Test (ASTM G57)
  • Groundwater Investigations
  • Cathodic Protection Projects
  • Grounding Studies



Features:

  • A Wenner max a-spacing of 500m (1640ft)
  • AWG 18 stranded copper wire with thermoplastic insulation and a nylon sheath
  • Shielding on the reels is used to minimize EM coupling noise
  • Terminated with a banana plug and banana plug socket located in the hub of the reel
  • Heat rating of 105˚C.
